White Black Double Sided Pcb Circuit Board For Precise Instrument

Shenzhen Xinchenger Electronic Co.,Ltd
Contact Now

White Black Double Sided Pcb Circuit Board For Precise Instrument

  • 1
  • 2

Brand Name : XCE

Model Number : XCEH

Certification : CE,ROHS, FCC,ISO9008,SGS,UL

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : T/T,Western union

Supply Ability : 1, 000, 000 PCS / week

Delivery Time : 5-10 days

Packaging Details : inner: vacuum-packed bubble bag outer: carton box

Model : XCEH

Size : 8*9cm

Panel : 2*3

Brand : XCE

Color : WHITE,BLACK

Origin : China

Copper THK : 1OZ

Shippment : Buyer's requirements

Solder mask : green

Silk screen : white

Contact Now

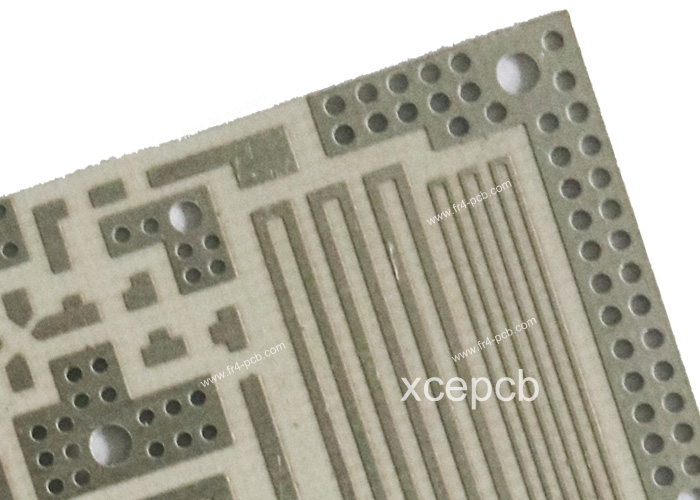

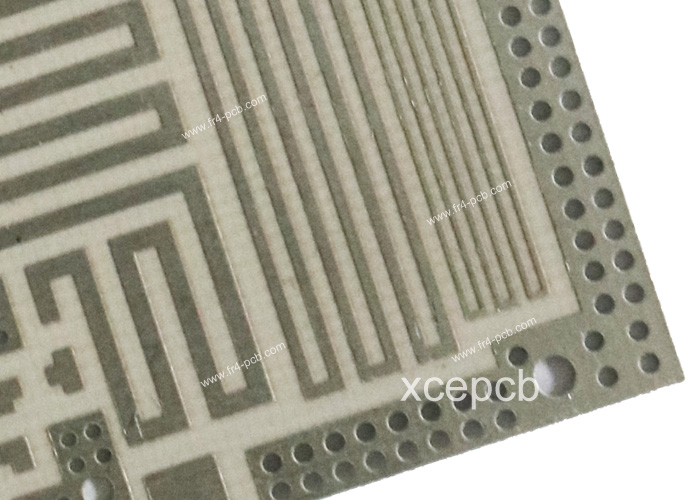

Teflon High Frequency Double Sided PCB Circuit Board For Precise Instrument

Quick Details:

PCB Type:

High frequency pcb

Layer :

2 layer

Min .Line Width/Space:

5mil/5mil

Min. Via Diameter:

0.3mm

Finish Thickness:

1.2mm

Surface Finish:

ENIG

Size:

8*9CM

Material:

Teflon high frequency material

Color:

golden

Application:

Precise instrument

Specification:

Which widely be used for :

Automotive Antennas / RFID

Back-up Aids
Collision Avoidance
Low-Noise Block Downconverter (LNB)
Mobile Infrastructure Antennas
Point to Point Digital Radios
Power Amplifiers
High Reliability

Airborne Antenna Systems
Broadcast Satellites
Ground Based Radar Systems
Millimeter Wave Applications
Missile Guidance Systems
High Speed Digital

Advantage

1.Sufficient high frequency material raw

2. PCB Have the comprehensive quality control system

3. PCB good price

4. PCB quick turn delivery time from 48hours.

5. PCB certification(ISO/UL E354810/RoHS)

6. 12 years experience in exporting service

7. PCB is no MOQ/MOV.

8. PCB is high quality.Strict through theAOI(Automated Optical Inspection),QA/QC,fly porbe ,Etesting

XCE PCB technical specification
Annual stock meterial Rogers,Taconic,Arton,Isola,F4B,TP-2,FR4,High TG,Halogen free
Layer No. 1-16
Min board thickness 2 layer 0.2mm
4 layer 0.4mm
6 layer 0.6mm
8 layer 0.8mm
10 layer 1.0mm
Max panel size 508*610mm
Board thickness tolerance   T≥0.8mm±8%,T<0.8mm±5%
Wall hole copper thickness   >0.025mm(1mil)
Finished hole 0.2mm-6.3mm
Min line width 4mil/4mil(0.1/0.1mm)
Min bonding pad space 0.1mm(4mil)
PTH aperture tolerance ±0.075mm(3mil)
NPTH aperture tolerance ±0.05mm(2mil)
Hole site deviation ±0.05mm(2mil)
Profile tolerance ±0.10mm(4mil)
Board bend&warp ≤0.7%
Insulation resistance >1012Ωnormal
Through-hole resistance <300Ωnormal
Electric strength >1.3kv/mm
Current breakdown 10A
Peel strength 1.4N/mm
Soldmask regidity >6H
Thermal stress 288℃20Sec
Testing voltage 50-300v
Min buried blind via 0.2mm(8mil)
Outer cooper thickness 1oz-5oz
Inner cooper thickness 1/2 oz-4oz
Aspect ratio 8:1
SMT min green oil width 0.08mm
Min green oil open window 0.05mm
Insulation layer thickness 0.075mm-5mm
Aperture 0.2mm-0.6mm
Special technology Inpedance,blind buried via,thick gold,aluminumPCB
Surface finish HASL,lead free,Immersion gold,immersion tin,immersion silver,ENIG,Blue glue,gold plating
