HASL Finish Prototype Double Side Pcb Quick Turn Fabrication Green

Shenzhen Xinchenger Electronic Co.,Ltd
Contact Now

HASL Finish Prototype Double Side Pcb Quick Turn Fabrication Green

Brand Name : XCE

Model Number : XCED

Certification : CE,ROHS, FCC,ISO9008,SGS,UL

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : T/T,Western union

Supply Ability : 1, 000, 000 PCS / week

Delivery Time : 5-10 days

Packaging Details : inner: vacuum-packed bubble bag outer: carton box

Color : green

Min line space : 3mil

Min line width : 3mil

Copper thickness : 70um

Size : 18*6cm

Board THK : 1.0MM

Panel : 5*1

Surface finish : HASL

Contact Now

HASL Finish Prototype PCB Service 2 Layer Quick Turn PCB Fabrication

Application

PCBs are applied to a wide range of High-tech industries such as: LED, telecommunication, computer application, lighting, game machine, industrial control, power, automobile and high-end consumer electronics, ect. By unremitting work and effort to the marketing, products exports to American, Canada, Europe counties, Africa and other Asia-pacific countries

Quick Detail:

Material: FR4 Number of layer: 2
Model: XCEM Brand: XCE
Name: Multilayer PCB Origin: shenzhen

Parameter:

Board thickness

0.21mm to 7.0mm

Copper thickness

0.5 OZ to 7.0 OZ

Copper thickness in hole

>25.0 um (>1mil)

Size

Max. Board Size: 23 × 25 (580mm×900mm)

Min. Drilled Hole Size: 3mil (0.075mm)

Min. Line Width: 3mil (0.075mm)

Min. Line Spacing: 3mil (0.075mm)

Surface finishing

HASL / HASL lead free, HAL, Chemical tin, Chemical Gold, Immersion Silver/Gold, OSP, Gold plating

Tolerance

Shape tolerance: ±0.13

Hole tolerance: PTH: ±0.076 NPTH: ±0.05

Certificate

UL, ISO 9001, ISO 14001

Special requirements

Buried and blind vias+controlled impedance +BGA

Profiling

Punching, Routing, V-CUT, Beveling

Provides OEM services to all sorts of printed circuit board assembly as well as electronic encased products.

Advantages:

1) We have professional research team.

2) No MOQ,small order are aslo welcome,From Prototype to Mass production.

3) All products are 100% tested working before sent to you.

4) One stop PCB solution

5) We have professional sales team, so please do not hesitate to contact us if you have any question

Description

1.Professional manufacturer of PCB specialized in single-sided PCB, double-sided PCB, multilayer PCB.

2. Material Type: FR4,non-halogen material ,Aluminium Base,Cooper Base,high frequency material ,Thick copper foil,94-V0(HB),PI Material,HIGH TG:SL S1000-2,ITEQ:IT180

3. Surface treatment: HAL,Immersion Gold,Immersion Tin,Immersion silver,Gold Finger,OSP,HAL(Immersion Gold,OSP,Immersion silver,Immersion Tin)+Gold Finger

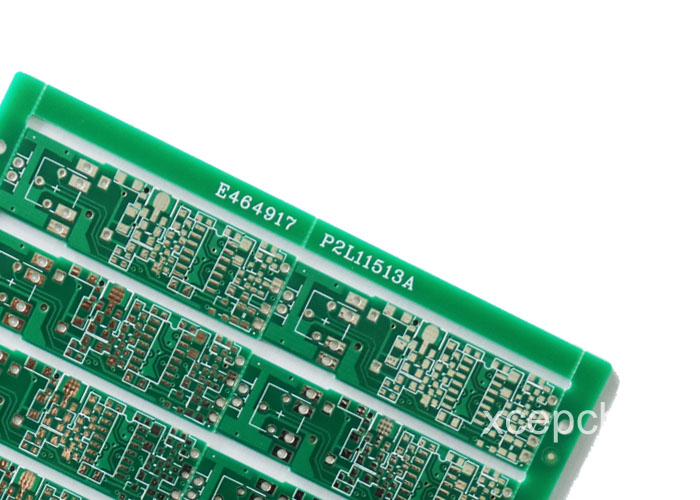

HASL Finish Prototype Double Side Pcb Quick Turn Fabrication Green

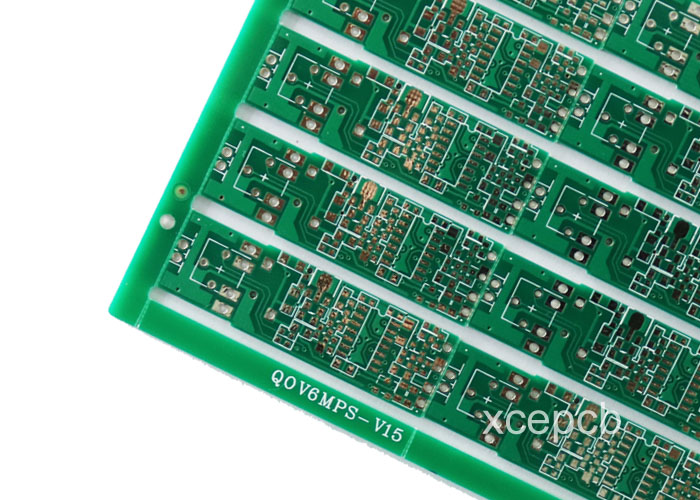

HASL Finish Prototype Double Side Pcb Quick Turn Fabrication Green
